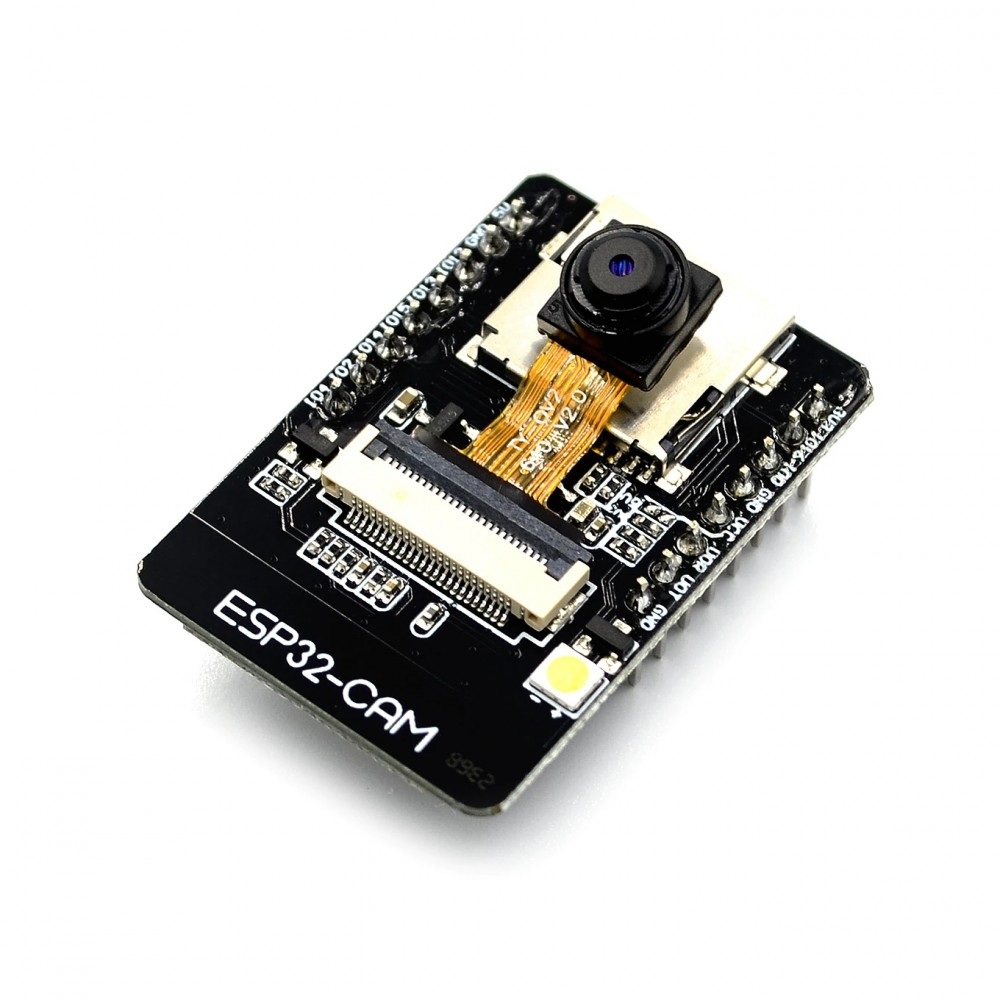

ESP32-CAM Camera Module development board

SKU: PDT-ESP-4 Categories: Development Boards, ESP Boards Brand: TOB HUB Generic

Processor: ESP32-Dual-core Xtensa
Built-in Flash: 32Mbit
RAM: Internal 512KB + External 4M PSRAM
Antenna: Onboard PCB antenna
WiFi protocol: IEEE 802.11 b/g/n/e/i
Bluetooth: 4.2 BR/EDR and BLE
Security: WPA/WPA2/WPA2-Enterprise/WPS
Output image format: JPEG (OV2640), BMP, GRAYSCALE
Supported TF card: up to 4G
Peripheral interface: UART/SPI/I2C/PWM
IO port: 9
Power supply: 5V

500.00₹

Out of stock

Don't Miss Top Accessories

Description

The ESP32-CAM is a low-power camera module based on ESP32. It comes with an OV2640 camera and provides an onboard TF card slot. This board has 4MB PSRAM which allows you to use higher quality in your pictures without crashing the ESP32. It also comes with an onboard LED for flash and several GPIOs to connect peripherals.

Features

Onboard ESP32-S module, supports WiFi + Bluetooth

OV2640 camera

Onboard TF card slot, supports up to 4G TF card for data storage

Supports multi sleep modes, deep sleep current as low as 6mA

Specification

Overview

Processor	Dual-core Xtensa
Wireless	WiFi protocol: IEEE 802.11 b/g/n/e/i Bluetooth: Bluetooth 4.2 BR/EDR and BLE
Memory	Internal 512KB + External 4M PSRAM
Power supply	5 V
