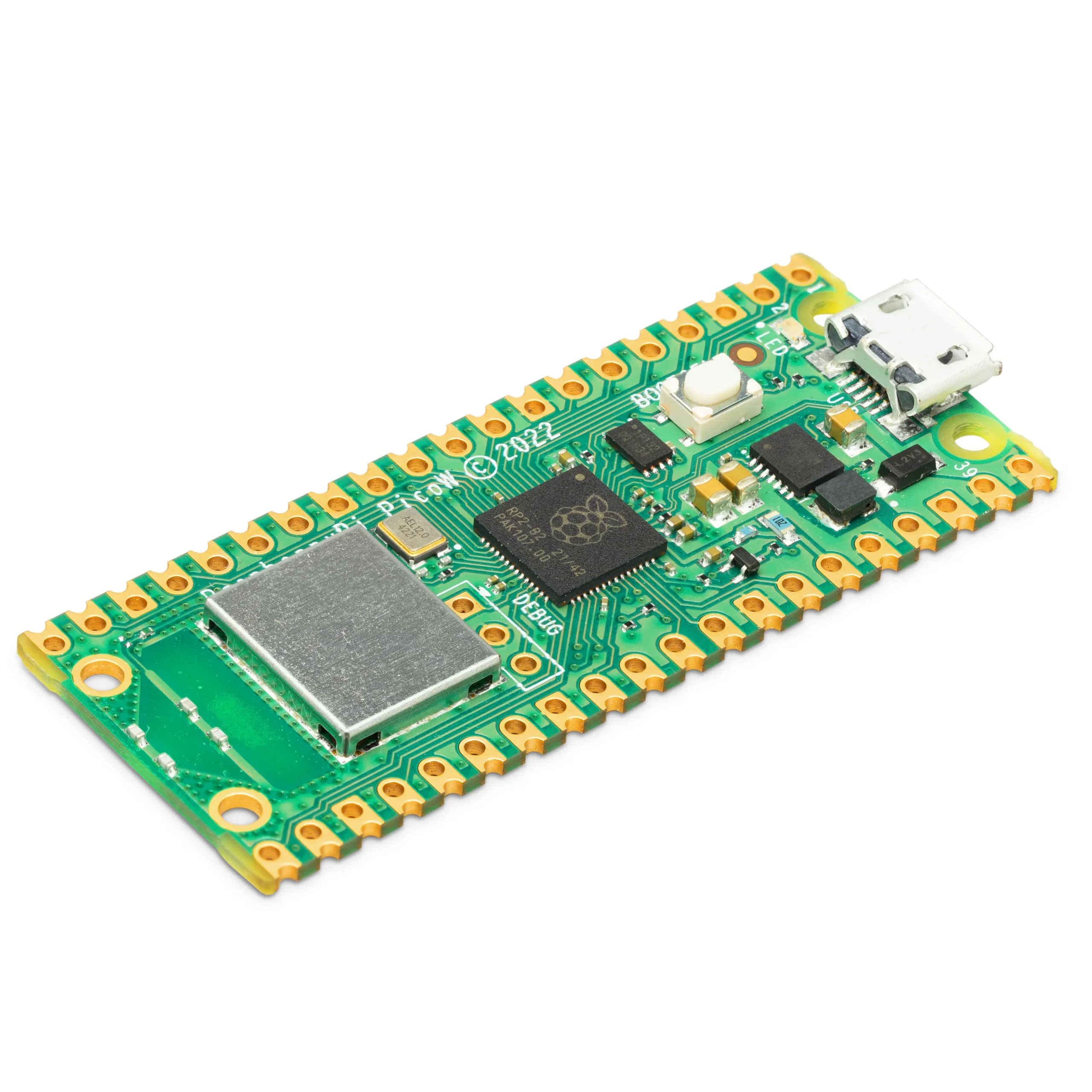

Raspberry Pi Pico W Development Board

SKU: PDT-RSB-1 Categories: Development Boards, Raspberry Boards Brand: TOB HUB Generic

The Raspberry Pi Pico W is a microcontroller board based on the RP2040 microcontroller chip.
Wireless Connectivity: Supports 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 5.2, allowing for wireless communication.
GPIO Pins: Offers 26 GPIO pins, with some pins used for internal functions and others for external interfacing.
Flash Memory: Equipped with 2MB of on-board flash memory for storage.
Power Supply: Designed to work with input voltages ranging from 1.8 to 5.5V, providing flexibility in powering the unit.
Programming: Can be programmed using MicroPython, C, or C++.

500.00₹

Out of stock

Don't Miss Top Accessories

GPIO Layout: GP0–GP28, with GP23, GP24, GP25, and GP29 not exposed on headers, leaving 26 accessible GPIOs.
Special Pins: 3-pin SWD debug interface near the RP2040; some pins are reserved for internal wireless chip functions.
On-board LED: Connected to a dedicated GPIO for status indication.

Wi-Fi: Single-band 2.4 GHz, supports WPA3 and soft access point mode for up to four clients.
Bluetooth: BLE Central and Peripheral roles, plus Bluetooth Classic support.

Open Design Files: PCB schematics, layout, and STEP files are available for study or reproduction, except for the proprietary antenna.
Software Development Kits: Raspberry Pi Pico C/C++ SDK and MicroPython SDK provide examples and libraries for rapid development.

USB Port: 5V input, can also supply external components via VBUS pin.
VSYS Pin: Accepts 1.8–5.5V from batteries or other sources; regulated to 3.3V internally.
Battery Integration: Compatible with single Li-ion cells or multiple AA batteries in series.

Processor	Dual‑core Arm Cortex‑M0+ @ 133 MHz
Wireless	2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 5.2
Flash Memory	2MB
Power Supply	Ranging from 1.8 to 5.5V
